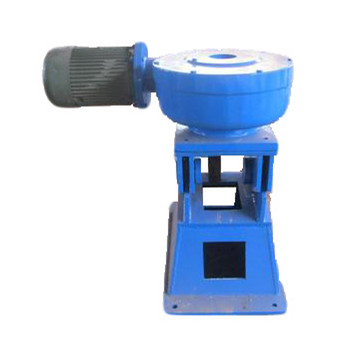

QLYB swing series screw hoist
Number of hits：29112015-10-28 16:29:25 Source: http://www.xhshuixing.com/
Feature：We could increase swing on the base of QL direct type so that it could instead of hydraulic hoist of ground dyadic sluice gate and radial gate to do opening and closing. Ground dyadic sluice gate is applicable to modern city landscape hydraulic engineering and lock. It has two typise, single-point lifting gate and double hanging point gate .
Feature：The device is improved on the basis of QL straight type. It has added swing base seats. In addition to various functions of original models, it can replace hydraulic hoist of horizontal gate and radial gate to open and close. Horizontal gate is mainly used for ship lock and city landscape gate. It can produce two models: single-point lifting gate and double hanging point gate.
Ordering: We should not only make out the ordering requirements of QL straight type, but also remark swing angle. We should remark center distances of hanging points.
规格/specification
specification
参数/parameter
parameter
h1
h2
h3
L1
L2
L3
L4

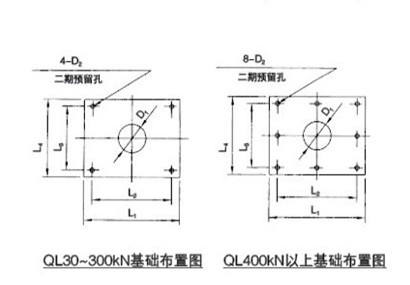

地脚螺栓/ anchor bolt anchor bolt
100KN
290
100
380
500
424
450
120
8xM24X500
150KN
315
160
400
560
480
500
130
8xM24X500
200KN
315
160
400
560
480
500
130
8xM24X500
250KN
390
220
450
620
540
500
130
8xM24X500
300KN
390
220
450
620
540
