QLP hand push screw hoist
Number of hits：27422015-10-28 16:28:49 Source: http://www.xhshuixing.com/

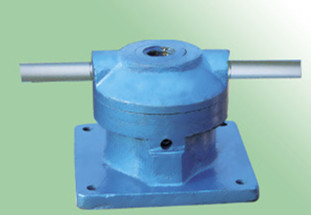

QLP straight shank flat screw screw hoist
Application: It is widlly applied to water conservancy and farm irrigation.
It is used to open and close the small gate.
Feature:It has self-locking function so as to stop at any location.

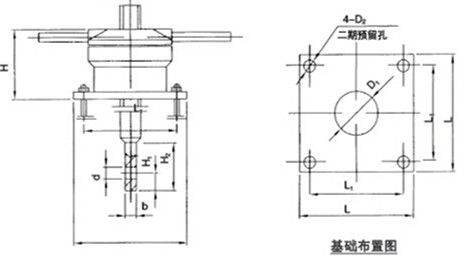

QL-P screw hoist's boundary dimension and performance parameter.
Application: It is wildly applied to water conservancy and farm irrigation which
is used to open and close small gate.
Feature: It manually has self-locking function so as to stop at any positions.
QL-P screw hoist's performance parameter and boundary
参数/ parameter
parameter
型号/ model
model
启闭力/ hoisting capacity
KN
hoisting capacity
KN
闭门力/closing force
KN
closing force
KN
启门
高度/opening height
m
opening height
m
螺杆/ screw
screw
数据 /data
data
地脚螺栓/ anchor bolt
anchor bolt
重量/weight
Kg
weight
Kg
全长/totle length
Mm
total length
mm
扣长/buckle long
Mm
Knot length mm
直径/diameter
diameter
L
L1
L2
h
h1
H1
H2
b
d
QL-0.5
5
2.5
0.7
1000
700
Ø30
140
280
110
85
115
30
100
25
Ø14
4-M12×200
21
QL-1
10
5
1
1500
1000
Ø32
150
300
120
105
145
35
100
30
Ø17
32
QL-2
20
10
1.5
2000
1500
Ø40
175
300
145
110
155
40
120
36
Ø20
4-M14×250
51
QL-3
30
15
2.5
3000
2500
Ø45
220
345
180
165
190
40
120
36
Ø23
70
|
参数
型号 |
启闭力 KN |
闭门力 KN |
启门 高度 m |
螺杆 |
数 据 |
地脚螺栓 |
重量 Kg |
||||||||||
|
全长 mm |
扣长 mm |
直径 |
L |
L1 |
L2 |
h |
h1 |
H1 |
H2 |
b |
d |
||||||
|
QL-0.5 |
5 |
2.5 |
0.7 |
1000 |
700 |
Ø30 |
140 |
280 |
110 |
85 |
115 |
30 |
100 |
25 |
Ø14 |
4-M12×200 |
21 |
|
QL-1 |
10 |
5 |
1 |
1500 |
1000 |
Ø32 |
150 |
300 |
120 |
105 |
145 |
35 |
100 |
30 |
Ø17 |
32 |
|
|
QL-2 |
20 |
10 |
1.5 |
2000 |
1500 |
Ø40 |
175 |
300 |
145 |
110 |
155 |
40 |
120 |
36 |
Ø20 |
4-M14×250 |
51 |
|
QL-3 |
30 |
15 |
2.5 |
3000 |
2500 |
Ø45 |
220 |
345 |
180 |
165 |
190 |
40 |
120 |
36 |
Ø23 |
70 |
|
