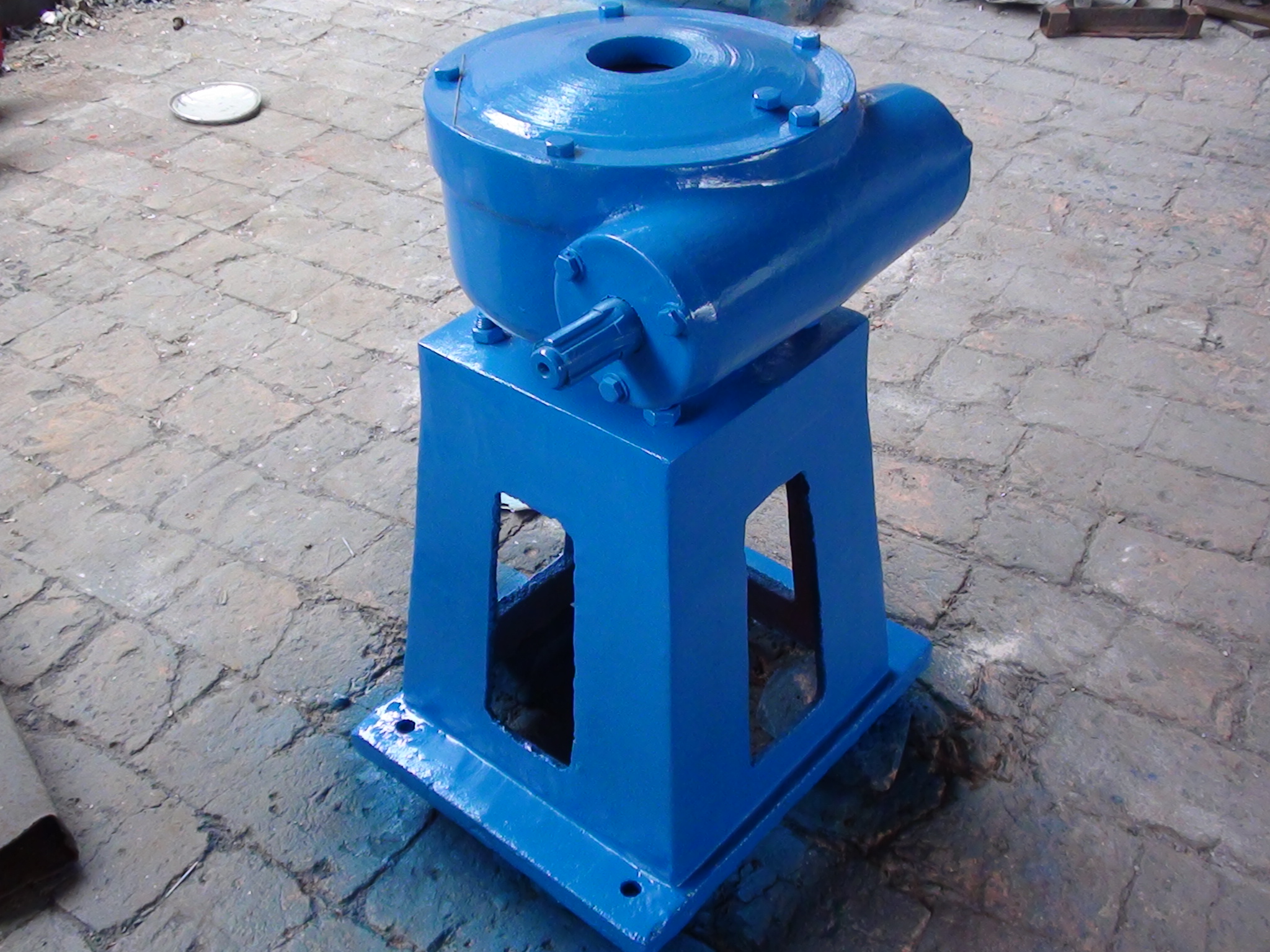

Hand screw hoist

Number of hits：29032015-10-28 16:25:59　Source: http://www.xhshuixing.com/

Aplication：it is applied to open and close manual plain gate

Future: Gate could stop at any position with self-locking function.

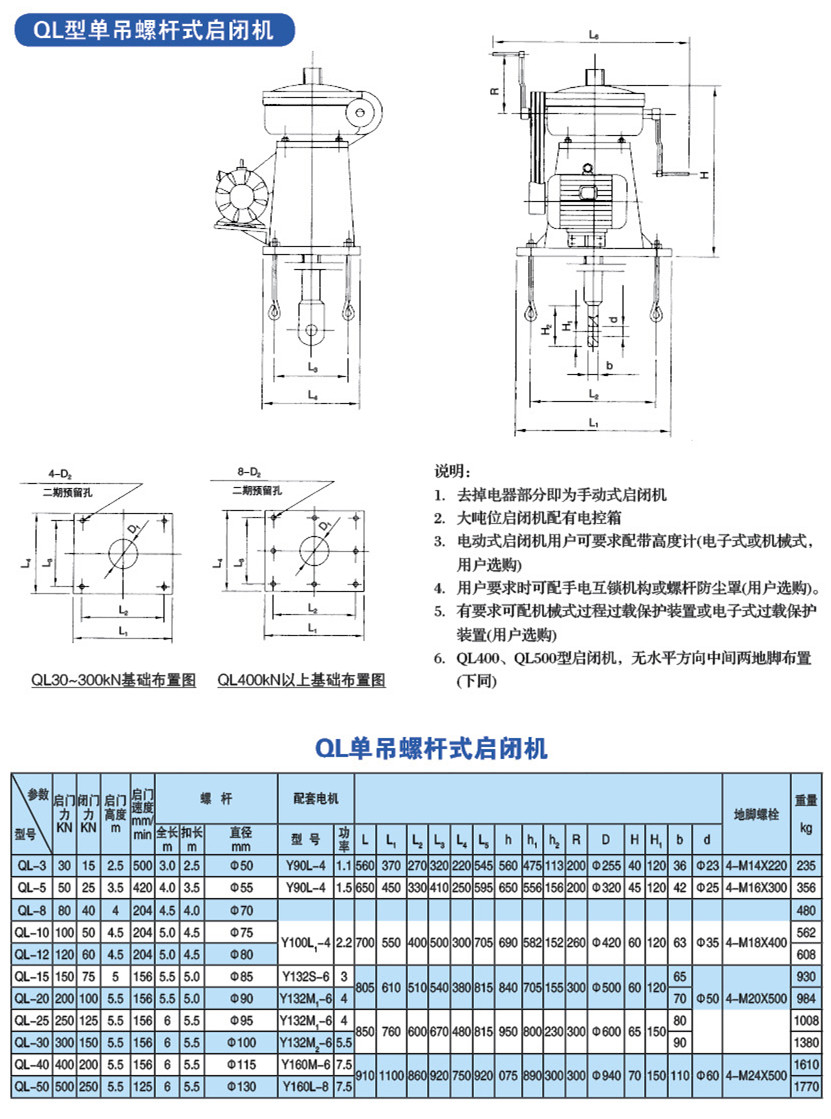

参数 parameter	启闭力KN hoisting capacity	闭门力KN closing force	启门高度 Gate opening height	螺杆 Screw rod			基本参数 mm basic parameter														地脚螺栓
			m	螺杆 Screw rod			基本参数 mm basic parameter
型号 model				全长 overall length	扣长 Knot length	直径 diameter	L	L1	L2	L3	L4	h	h1	h2	R	D	H	H1	b	d
				m	m	mm	L	L1	L2	L3	L4	h	h1	h2	R	D	H	H1	b	d
LQ-3T	30	15	2	2.5	2	45	640	370	270	320	220	560	475	113	200	250	40	120	36	23	4-M14×250
LQ-5T	50	25	3	3.5	3	50	720	450	330	410	250	650	556	156	200	300	45	120	42	25	4-M16×300
LQ-8T	80	40	3.5	4	3.5	65	760	550	400	500	300	690	582	152	260	410	60	120	62	35	4-M18×400
LQ-10T	100	50	4	4.5	4	70	760	550	400	500	300	690	582	152	260	410	60	120	62	35	4-M18×400
LQ-12T	120	60	4	4.5	4	75	760	550	400	500	300	690	582	152	260	410	60	120	62	35	4-M18×400
LQ-15T	150	75	4.5	5	4.5	80
