HQN type rotary trash-cleaning machine
Number of hits：30212015-10-28 16:42:31 Source: http://www.xhshuixing.com/
HQN type rotary trash-cleaning machine aims at transmission structure of regular cleaning machine. It adopts built-in motor while dealing with over-length dirt (dirt width exceeds hole length) and ultra-high dirt (dirt height exceeds rack height).The motor hides within the rack so as to enhance outdoor protective capability of itself. It is applicable to hydropower station and pump station which exists large dirt (such as the whole plant bamboo, etc.).Driving methods are divided into two types: hydraumatic and electric.
|
Clear width of hole（b） m |
2-8.5 |
|
assembly angle（a） 度 |
60-90 |
|
Design head difference(m) |
1-4 |
|
Centre distance between railings (mm)
|
20-200 |
|
decontamination capability (L/h ) |
20-50 |
|
Rotary speed of gangway chain(m/s) |
0.1 |
|
working width of tine harrow(m) |
1.7-8.2 |
|
Motor power(kw) |
1.5-11 |
|
vertical installing height (m) |
3-20 |

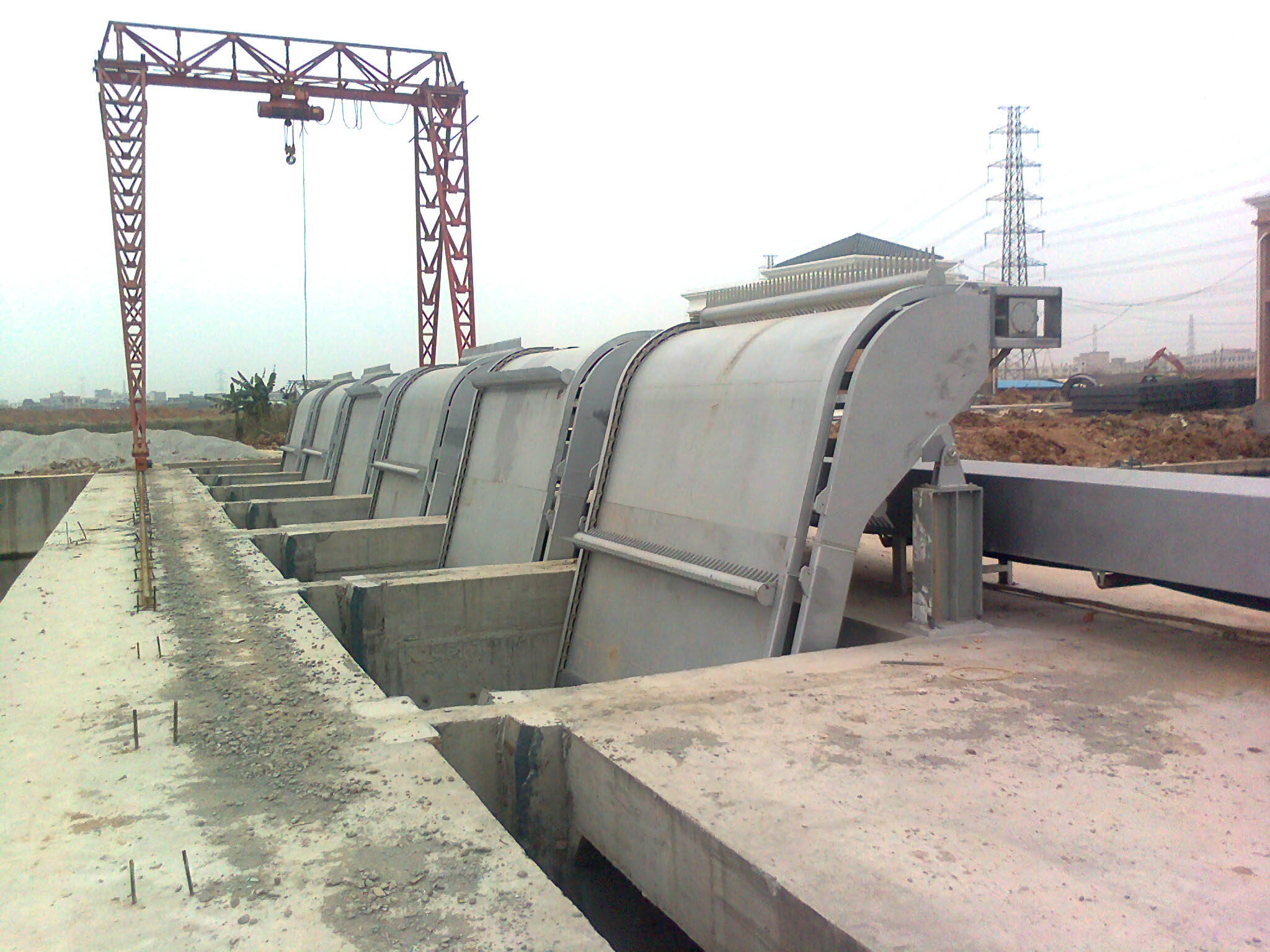

ZD-E circulating tine harrow cleaning machine
ZD-E circulating tine harrow cleaning machines are mainly located in large water intakes, sewage and rainwater pump stations, sewage treatment plant inlet, etc. It continuously and automatically blocks and cleans tiny fibers and floating debris, which ensures normal operation of pumps and other devices.
It is applied to small and medium rough filtration cleaning devices in municipal,diversion and drainage projects.
|
Type
|
ZD-E-300 |
ZD-E-500 |
ZD-800 |
ZD-E-1000 |
ZD-E-1500 |
|
setting angle |
75° |
75° |
75° |
75° |
75° |
|
grid gap of tine (mm) |
5.10.15.20 |
5.10.15.20 |
5.10.15.20 |
5.10.15.20 |
5.10.15.20 |
|
pitch of tine (mm) |
100 |
100 |
100 |
100 |
100 |
|
Motor power(kw) |
0.37 |
0.75 |
0.75 |
1.1 |
1.5 |
|
Working velocity(m/min) |
2 |
2 |
2 |
2 |
2 |
|
liquid velocity(m/s) |
0.5-1.0 |
0.5-1.0 |
0.5-1.0 |
0.5-1.0 |
0.5-1.0 |
|
grilling width K1 (mm) |
300 |
500 |
800 |
1000 |
1500 |
|
equipment width K2 (mm) |
450 |
650 |
950 |
1150 |
1650 |
|
ditch width B(mm) |
500 |
700 |
1000 |
1200 |
1700 |
|
ditch depth H(mm) |
option |
option |
option |
option |
option |
|
slag discharge height mm |
700 |
700 |
700 |
700 |
700 |
